Metalized Fabric Gaskets

Setting New Standards in EMI Shielding Control

The ID Group brings best-in-class EMI RFI shielding products to a multi-industry client base. Available in Standard and Custom profiles, the metalized fabric gaskets are setting new standards in EMI shielding control. All our gaskets feature RoHS and REACH-compliant metalized fabric over a polyurethane foam core.

Tech-Etch 2400 Series Metalized Fabric Gaskets

The Standard 2400 Series features a highly conductive copper plated substrate with a nickel plating for enhanced attenuation shielding. Since the conductive substrate is bonded to the core, it provides superior flexibility and ease of customization by ensuring self-termination when cut.

All profiles have less than 3% compression set. For easy installation, the stick-on mounting features a double-sided, pressure-sensitive tape that needs a curing time of 24 hours. We offer these gaskets in standard shapes (below) or produce custom profiles to your specifications.

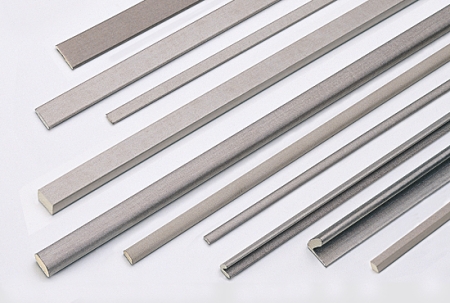

EMI RFI Shielding Products - Metalized Fabric Gaskets

Standard Shapes

  • Rectangular
  • Square
  • Domed shape
  • D Shape
  • C-Fold
  • Knife Edge
  • Flat

WE CAN HELP

The ID Group experts can answer all your questions about metalized fabric gaskets and help you select the right one for your application.

REACH OUT TO OUR EXPERTS

REQUEST PRICING

Maybe you already know what you are looking for. We’ll be happy to give you pricing for your specific requirements.

GET PRICING

Tech-Etch 2600 Series Metalized Fabric Gaskets

The Custom 2600 Series takes into account a number of aspects to tailor the metalized fabric gaskets to your exact requirements. Our experts can help in designing and procuring custom rule die gaskets. We look at material softness for determining the dimensional tolerances. Similarly, we consider the material thickness for calculating the minimum distance between the cutouts and edges, as well as the minimum diameters of the holes.

D-Connector Metalized Fabric Gaskets

When you don’t need customization, the standard D-Connector gasket can be the most economical and efficient choice for your application. These gaskets can shield most 9-pin through 50-pin connectors and are made of conductive elastomers or metal. We stock a variety of sizes in varying levels of thickness in each size.

Have any questions about metalized fabric gaskets? Fill in our Ask the Expert form today. One of our knowledgeable and friendly technicians will get back to you soon. Visit our EMI RFI Shielding page for a complete overview of our EMI RFI shielding products.

Metalized Fabric Gaskets

Specifications

Tolerances: Height and Width +/- 0.020 in. ≤ .100 +/- 0.030 in. > .100
Foam Core: Open-Celled Polyurethane Foam
Metalized Fabric: Nickel Plating over Copper Substrate
Service Temperature: -40 degrees F to 194 degrees F (-40 degrees C to 90 degrees C)
Compression Set: (ASTM D3574) 2.6%
Compression Deflection: (ASTM D3574) 1.47 PSI
Flammability Rating: UL 94 V-Rated
Surface Resistivity: (ASTM F390) <.02 Ohms
RoHS Compliant: Yes

Rectangular

Gaskets

Height (in.) Width (in.) Part Number

.040
.040
.040
.040
.040
.040
.040
.062
.062
.062
.062
.062
.080
.080
.080
.091
.100
.100
.118
.120
.125
.125
.125
.125
.130
.130
.150
.150
.157
.160

.195
.195
.200

.250
.250
.250

.250
.375
.375

.120
.157
.200
.275
.395
.500
.710
.170
.200
.300
.395
.500
.160
.275
.400
.100
.080
.375
.157
.150
.250
.500
.700
.750
.190
.380
.375
.500
.315
.200

.500
.315
.750

.300
.375
.500

.750
.500
1.000

2411 – 101A – 0100
2411 – 101A – 0101
2411 – 101A – 010
2
2411 – 101A – 0141
2411 – 101A – 0103
2411 – 101A – 0204
2411 – 101A – 0187
2411 – 101A – 0165
2411 – 101A – 0105
2411 – 101A – 0142
2411 – 101A – 0231
2411 – 101A – 0104
2411 – 101A – 0143
2411 – 101A – 0106
2411 – 101A – 0107
2411 – 101A – 0227
2411 – 101A – 0177
2411 – 101A – 0206
2411 – 101A – 0178
2411 – 101A – 0144
2411 – 101A – 0108
2411 – 101A – 0109
2411 – 101A – 0145
2411 – 101A – 0208
2411 – 101A – 0110
2411 – 101A – 0146
2411 – 101A – 0147
2411 – 101A – 0193
2411 – 101A – 0148
2411 – 101A – 0167

2411 – 101A – 0198
2411 – 101A – 0181
2411 – 101A – 0223

2411 – 101A – 0230
2411 – 101A – 0111
2411 – 101A – 0112

2411 – 101A – 0149
2411 – 101A – 0113
2411 – 101A – 0191

C-Fold

C-Fold

Height (in.) Width (in.) Part Number
.250
.385
.395
.675
.250
.420
.430
.590
2441 – 101A – 0137
2441 – 101A – 0138*
2441 – 101A – 0139
2441 – 101A – 0140
Flat

Flat

Height (in.) Width (in.) Part Number
.040
.040
.060
.060
.060
.080
.080
.100
.100
.118
.120
.125
1.000
1.650
0.750
1.000
1.440
0.830
1.142
1.200
1.500
2.165
1.440
1.615
2461 – 101A – 0158
2461 – 101A – 0169
2461 – 101A – 0159
2461 – 101A – 0160
2461 – 101A – 0179
2461 – 101A – 016
1
2461 – 101A – 0170
2461 – 101A – 0171
2461 – 101A – 0172
2461 – 101A – 0189
2461 – 101A – 0173
2461 – 101A – 0162
Square

square

Height (in.) Width (in.) Part Number
.093
.118
.157
.195
.236
.250
.375
.395
.500
.093
.118
.157
.195
.236
.250
.375
.395
.500
2421 – 101A – 0199
2421 – 101A – 0114
2421 – 101A – 0168
2421 – 101A – 0115
2421 – 101A – 0116
2421 – 101A – 0117
2421 – 101A – 0118
2421 – 101A – 0119
2421 – 101A – 0120
D

D

Height (in.) Width (in.) Part Number
.060
.060
.070
.090
.090
.100
.120
.125
.125
.140
.140
.150
.157
.158
.196
.200
.250
.250
.375
.500
.150
.250
.180
.090
.150
.300
.150
.090
.250
.250
.375
.150
.315
.433
.315
.190
.250
.375
.500
.500
2431 – 101A – 0122
2431 – 101A – 0229
2431 – 101A – 0214
2431 – 101A – 0123
2431 – 101A – 0150
2431 – 101A – 0224
2431 – 101A – 0124
2431 – 101A – 0151
2431 – 101A – 0125
2431 – 101A – 0126
2431 – 101A – 0163
2431 – 101A – 0152
2431 – 101A – 0220
2431 – 101A – 0186
2431 – 101A – 0153
2431 – 101A – 0154
2431 – 101A – 0127
2431 – 101A – 0128
2431 – 101A – 0155
2431 – 101A – 0226
Knife Edge

Knife Edge

Height (in.) Width (in.) Part Number
.106
.250
.088
.445
.750
.455
2451 – 101A – 0156
2451 – 101A – 0157
2451 – 101A -0196
Domed Shapes

Domed Shapes Domed Shapes

Height (in.) Width (in.) Part Number
.080
.080
.080
.080
.080
.100
.120
.450
.450
.500
.500
.675
.394
.600
2471 – 101A – 0194
2471 – 101A – 0202
2471 – 101A – 0174
2471 – 101A – 0205
2471 – 101A – 0175
2471 – 101A – 0207
2471 – 101A – 0195
