EMI Mesh Gaskets for EMI/RFI Shielding
The ID Group offers high-performance mesh gaskets to manufacturers looking to ensure effective EMI/RFI shielding in enclosure seams and vibration-prone interfaces. Crafted from knitted wire mesh with core material options, our EMI mesh gaskets offer optimized compression, conductivity, and corrosion resistance for both static and dynamic applications.
Why Choose EMI Mesh Gaskets?
Mesh gaskets from Tech Etch are engineered to deliver reliable EMI shielding with exceptional mechanical flexibility. Compared to other gasket types, EMI mesh gaskets offer several advantages.
- Flexible and conformable: Ideal for irregular or uneven mating surfaces such as enclosures, connectors, and cable transitions.
- Integrated sealing and EMI protection: Delivers shielding and environmental sealing in a single, compact solution.
- Consistent compression and vibration resilience: Elastomer-backed profiles maintain performance under movement, vibration, and long-term stress.
- Versatile material options: Wide selection of conductive materials supports electrical performance and galvanic compatibility.
Simplified sourcing and installation: Available cut-to-length, on spools or in coils to suit your assembly needs.
Main Features of Our EMI Mesh Gaskets
Knitted wire mesh gaskets are an economical solution for those looking for EMI shielding. Our gaskets come in different designs and options to satisfy the sealing and shielding needs of any project.
- Standard profiles: Round, round with tail, double round with tail, half‑round (D‑shape) or rectangular
- Profiles composition: All-mesh or mesh-over-elastomer
- Length options: Available on spools, coils or cut to length with or without end seals
- Mounting Options: Grooved or stick-on
- Core Material Options: Neoprene (standard), Silicone, Polyurethane
- Conductive material options: Monel™, TCS (tin‑plated copper‑clad steel), stainless steel, or aluminum.
- RoHS compliant core materials: Neoprene sponge or solid, Silicone sponge or solid, or Polyurethane Foam
Innovative EMI Mesh Gasket for Efficient Environmental Seal
If your application needs both EMI shielding and protection from the elements, Tech Etch’s 3000 Series Twinseal gasket is a smart choice. It combines a high-performance mesh for EMI/RFI control with a built-in neoprene or silicone seal, keeping out dust, moisture, and debris in even the harshest environments.

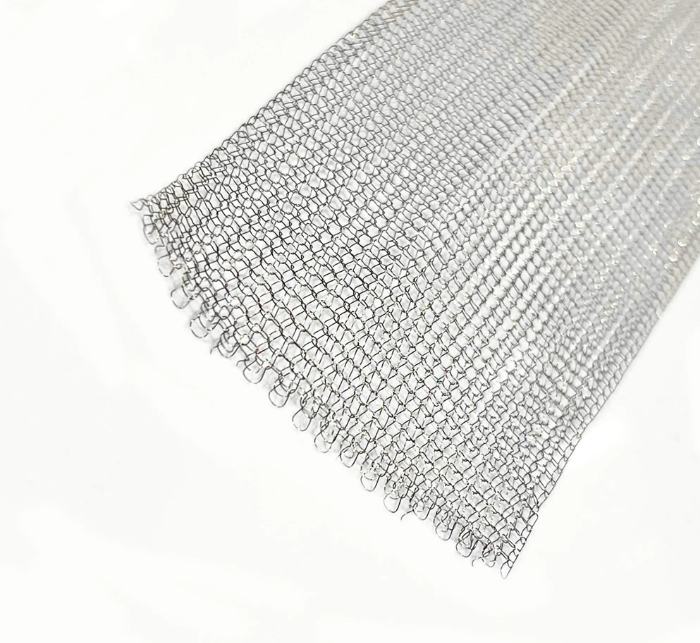

EMI Shielding Tape
Tech Etch’s 2100 Series shielding tapes delivers superior flexibility and protection in a compact, wire-mesh format—ideal for irregular surfaces, cable bundles, and harnesses With options in Sn/Cu/Fe, Monel, Aluminum, and Stainless Steel, it achieves approximately 40 dB shielding effectiveness, in a standard 10 courses/in, and is available in 25 ft spools—custom lengths available
Additional EMI/RFI Shielding Solutions We Provide
Beyond mesh gaskets, The ID Group offers complete shielding solutions, including conductive foam gaskets, fingerstock gaskets, board-level shielding, EMI honeycomb vents, and more. Need help choosing the right shielding mesh gasket? Our technical specialists can help you pick the ideal mix of profile, material, and core for your sealing and shielding needs. Contact us to discuss your application.
